SmartMotion™ CAR Controllers

CAR control for MBE substrate manipulators using two SmartMotion controllers: one for the rotation axis and one for the position axis.

Standard on the rotation controller: a home-pulse output with a programmable width of 1–200 ms for synchronizing in situ data collection.

±0.1° position
±0.01 RPM to 60 RPM
Backlash compensation
Standard 1–200 ms home pulse
2U, half rack per axis

View specifications Talk to an engineer

Two SmartMotion controllers for CAR control, with the rotation axis on the left and position axis on the right — Two SmartMotion controllers configured for CAR control: rotation axis (left) and position axis (right).

Replacement compatibility

Replacement form factor and motion hardware

EpiTech motion-controller replacements match the form factor of the older Veeco model they are intended to replace. The motion system uses EpiTech motors and cables with metal screw-together connectors.

Specify the controller model and mechanism being replaced when discussing the motion configuration.

Features

Controller features

Standard synchronization output

The rotation controller includes a home-pulse output as standard. Program the pulse width from 1 to 200 milliseconds to synchronize in situ data collection with substrate rotation.

Separate rotation and position controllers

The CAR configuration uses two SmartMotion controllers. One controls the rotation axis and the other controls the position axis, each with its own front panel.

Position and rotation calibration

Calibrate position and rotation angle quickly, and reset zero without recalibrating the safe range of motion.

Backlash and gear-ratio settings

Backlash compensation and an adjustable gear ratio match the controller to your manipulator.

Startup and motor enable

Boots in seconds, with a front-panel enable button to disable the motor at once.

Specifications

Key specifications

CAR configuration: Two SmartMotion controllers: one rotation axis and one position axis
Position accuracy: ±0.1°
Rotation rate accuracy: ±0.01 RPM, up to 60 RPM
Rotation home-pulse output: Standard; pulse width programmable from 1 to 200 ms for synchronizing in situ data collection
Motor: Brushless AC servo, 200 W or 400 W
Size: 2U high, half rack width per axis
Input voltage: 100–240 VAC, single phase
Cable: 10 m standard
Software: Compatible with Molly, AMBER, Nova, Crystal XE, and Machine Studio (Epiware’s control software)

Photos

Product photographs

Two SmartMotion CAR controllers: rotation axis on the left and position axis on the right

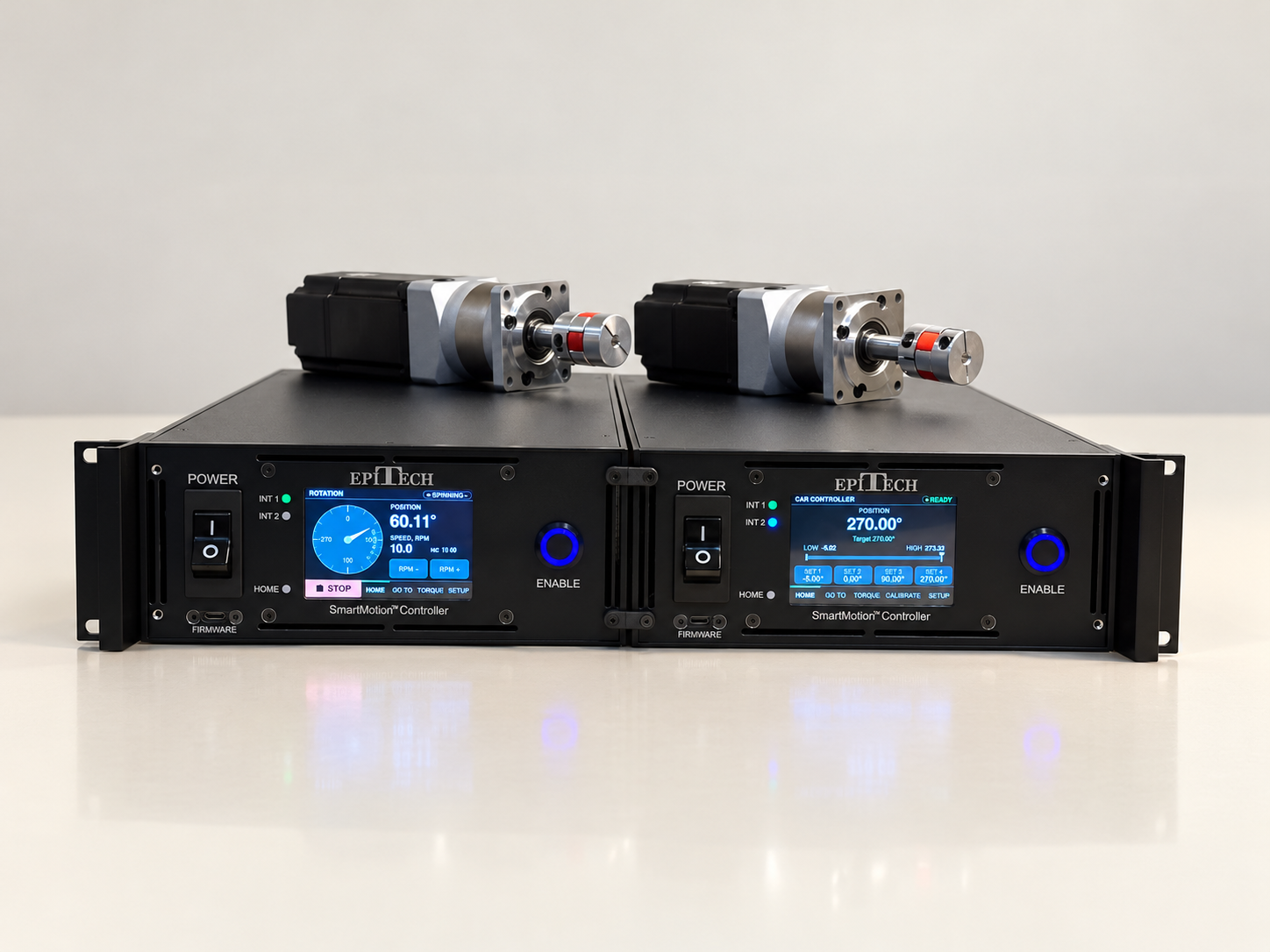

Two SmartMotion controllers and motors on a cream surface

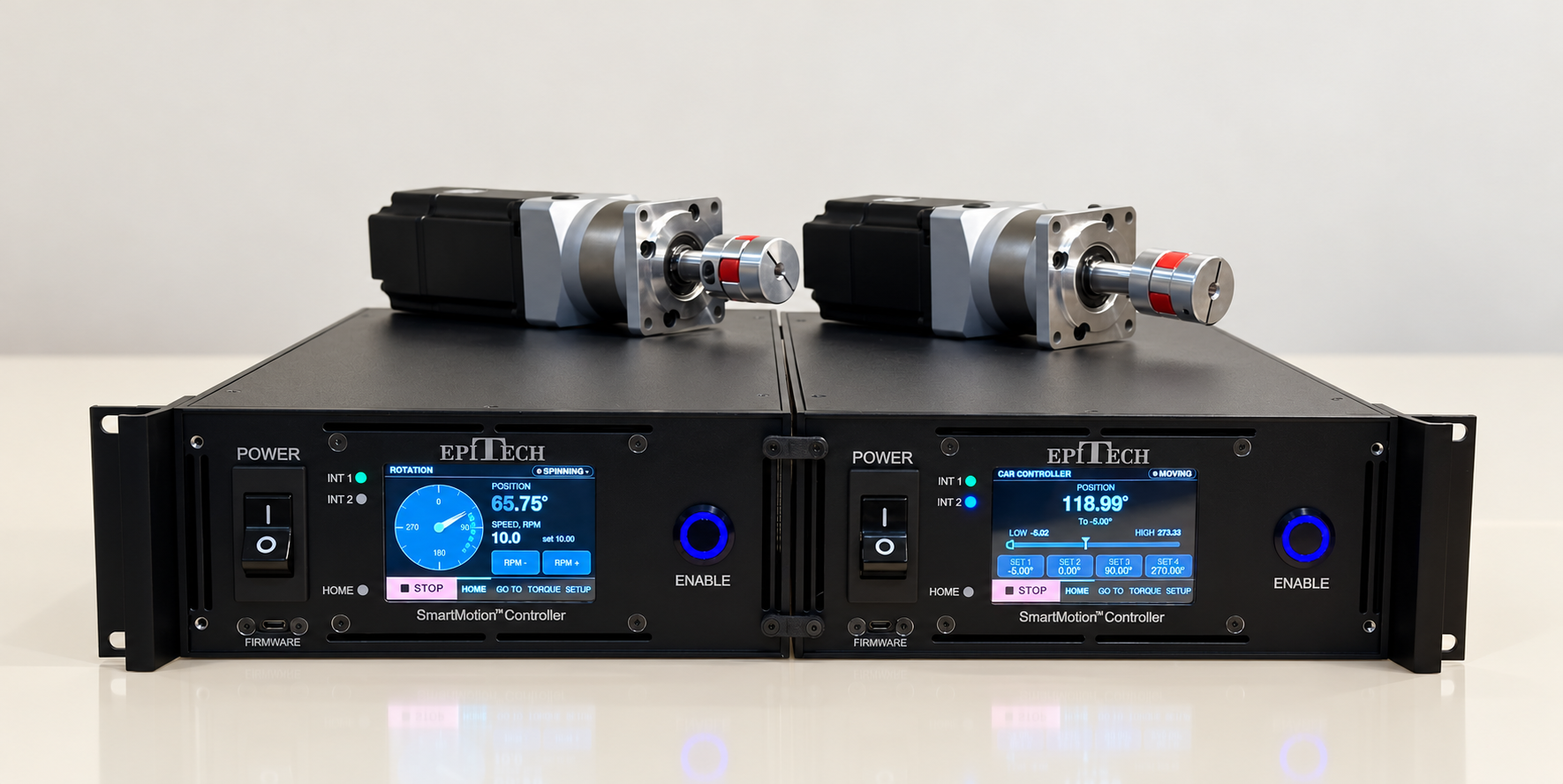

SmartMotion controller pair in a rack-width arrangement

Communications

Communications and software compatibility

Ethernet and serial interfaces support integration with modern and legacy MBE control software. Supported protocols and interfaces are listed below.

Modbus TCPEthernet
Modbus RTURS-422 serial
EI-BisynchRS-422 serial
Molly · AMBER · Nova · Crystal XEcompatible
Machine Studioby epiware llc

Specifications and operating instructions

Request the SmartMotion CAR controllers datasheet

We'll email the full specifications and operating instructions. Or tell us about your system and an engineer will follow up about integrating it.

Contact EpiTech: 443-295-3625 · [email protected]
