Power & temperature

SmartPower™ Effusion Cell Power Supplies

Temperature-controlling power supplies for MBE effusion cells, from 800 W to 3000 W, in single and dual-output versions. Select voltage, current, or power control and adjust the output setting directly from the front-panel touchscreen. Programmable interlocks and controlled recovery manage power delivery during and after an interlock event.

  • 800 W · 1500 W · 3000 W
  • Single or dual output
  • Voltage / current / power control
  • Optional pyrometer input
  • Ethernet + serial

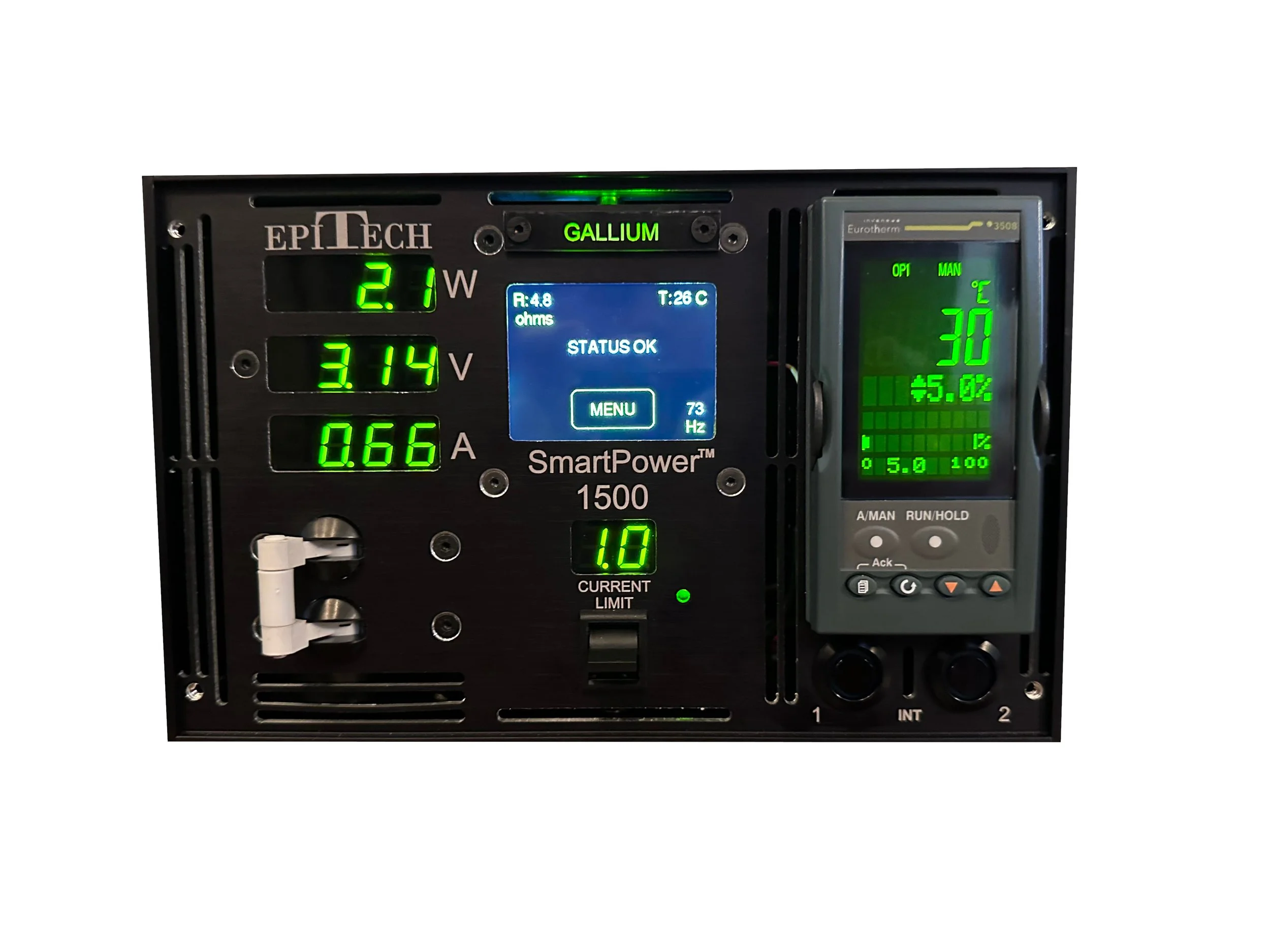

SmartPower Single 1500 front panel with one output and illuminated Gallium label
Single-output power supply

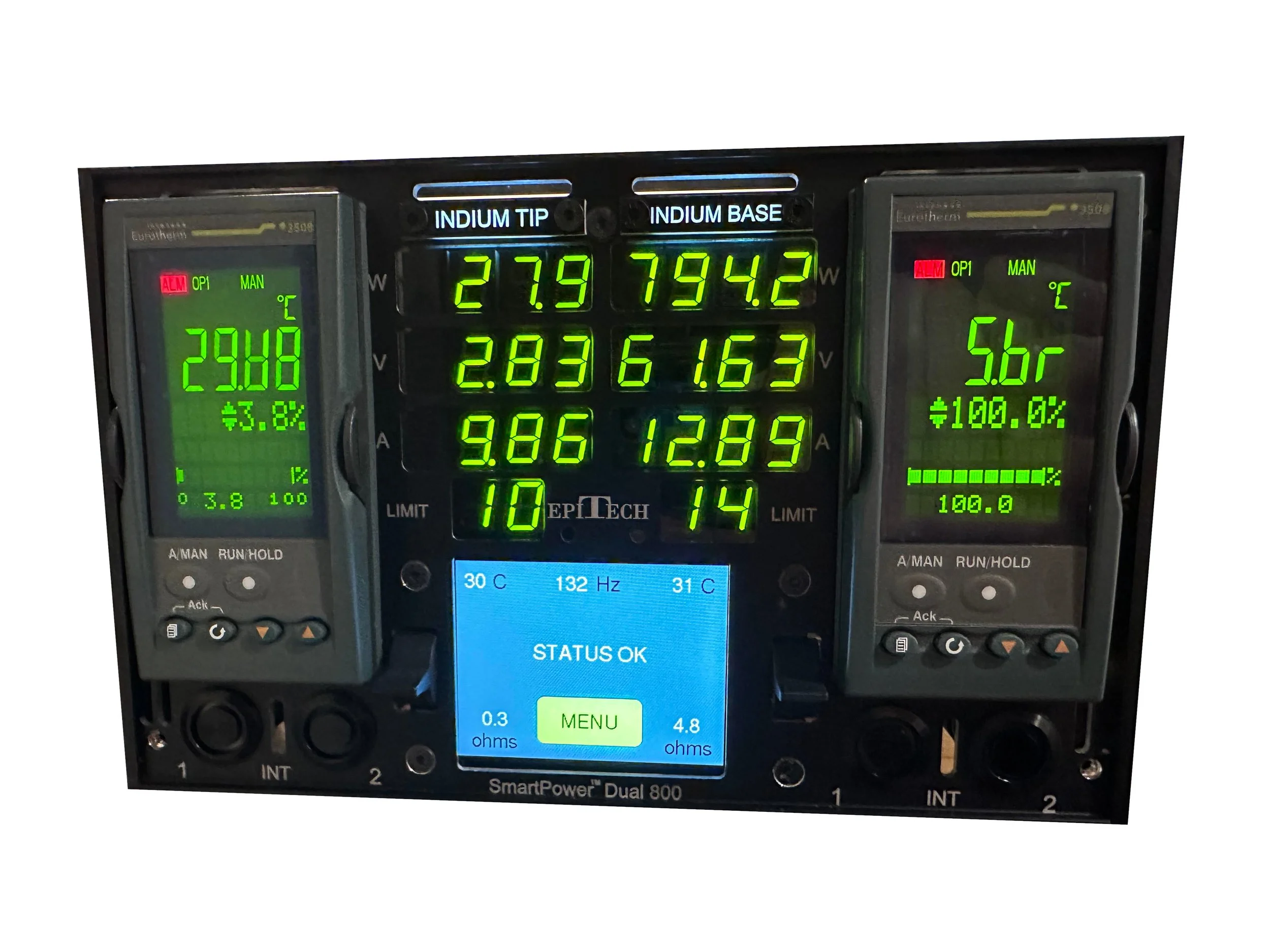

SmartPower Dual 800 front panel with two outputs and illuminated Indium Tip and Indium Base labels
Dual-output power supply

Replacement compatibility

Replacement form factor and connections

EpiTech replacement power supplies use the same connections and form factor as the models they are designed to replace. This supports replacement of obsolete supplies within the existing equipment installation.

Identify the supply being replaced when requesting a configuration so the replacement can be matched to that model.

Models

Choose your configuration

SmartPower model comparison
ConfigurationPower versionsOptions
SmartPower800 W · 1500 W · 3000 WOptional pyrometer input
SmartPower Dual800 W · 1500 WOptional setpoint tracking for dual-filament cells

Current SmartPower Single and Dual designs include illuminated channel-identification labels above the front-panel readouts.

Pyrometer switching can be controlled from software, a remote switch, a 5 V signal, or the front panel. A timer can return control to the thermocouple automatically.

Specifications

Key specifications

Output power
800 W, 1500 W, 3000 W
Outputs
Single, or dual (800 W / 1500 W)
Inputs
Thermocouple, optional pyrometer
Output control
Voltage, current, or power control, selectable and adjustable from the front-panel touchscreen
Front panel
Capacitive touchscreen, live power, voltage and current
Cooling
20-year MTBF fans, more than 3× required airflow
Communications
Ethernet and RS-422 serial
Diagnostics
On-screen status: fan, internal temperature, and more

Interlocks

Interlock operation and recovery

Smart interlock control

While interlock 1 disables the supply, the temperature controller's PID loop is prevented from accumulating integration error. This limits excessive power demand when the interlock clears.

Soft interlock recovery

When interlock 1 clears, the requested output starts from 0% and is rate-limited so it can't reach 100% in under 10 seconds. Output recovery is controlled to limit abrupt changes in voltage and current.

Front-panel interlock bypass

The front panel allows either interlock to be bypassed. Select the interlock configuration according to the effusion cell requirements and the effects of rapid cooling.

Photos

Product photographs

Current SmartPower Single 800 angled front view with illuminated Silicon labelSmartPower 3000 supply, front panelSmartPower Dual 800 rear panel showing both power outputs and control connectionsCurrent SmartPower Single rear panel showing power output, thermocouple, interlock, Ethernet, and serial connections

Installed equipment

SmartPower supplies in an MBE electronics rack

Ten SmartPower 800 supplies are installed in five rows, with a SmartShutter16 controller above them. This installation photograph shows an earlier EpiTech design; the current Single and Dual designs are shown in the product photographs above.

Communications

Communications and software compatibility

Ethernet and serial interfaces support integration with modern and legacy MBE control software. Supported protocols and interfaces are listed below.

  • Modbus TCPEthernet
  • Modbus RTURS-422 serial
  • EI-BisynchRS-422 serial
  • Molly · AMBER · Nova · Crystal XEcompatible
  • MachineStudioby epiware llc

Choosing your configuration

Practical details to help specify the right equipment.

Which SmartPower configuration fits my system?

Single-output supplies are available at 800 W, 1500 W, and 3000 W. Dual-output versions are available at 800 W and 1500 W. Specify the required voltage, current, number of outputs, and temperature input so the configuration can be matched to your application.

What should I send when requesting a replacement?

Include the existing supply model, output ratings, connector details, and your thermocouple or pyrometer requirements. Photos of the front and rear panels help identify the connections and form factor to match.

Specifications and operating instructions

Request the SmartPower datasheet

We'll email the full specifications and operating instructions. Or tell us about your system and an engineer will follow up about integrating it.

Contact EpiTech: 443-295-3625 · [email protected]
