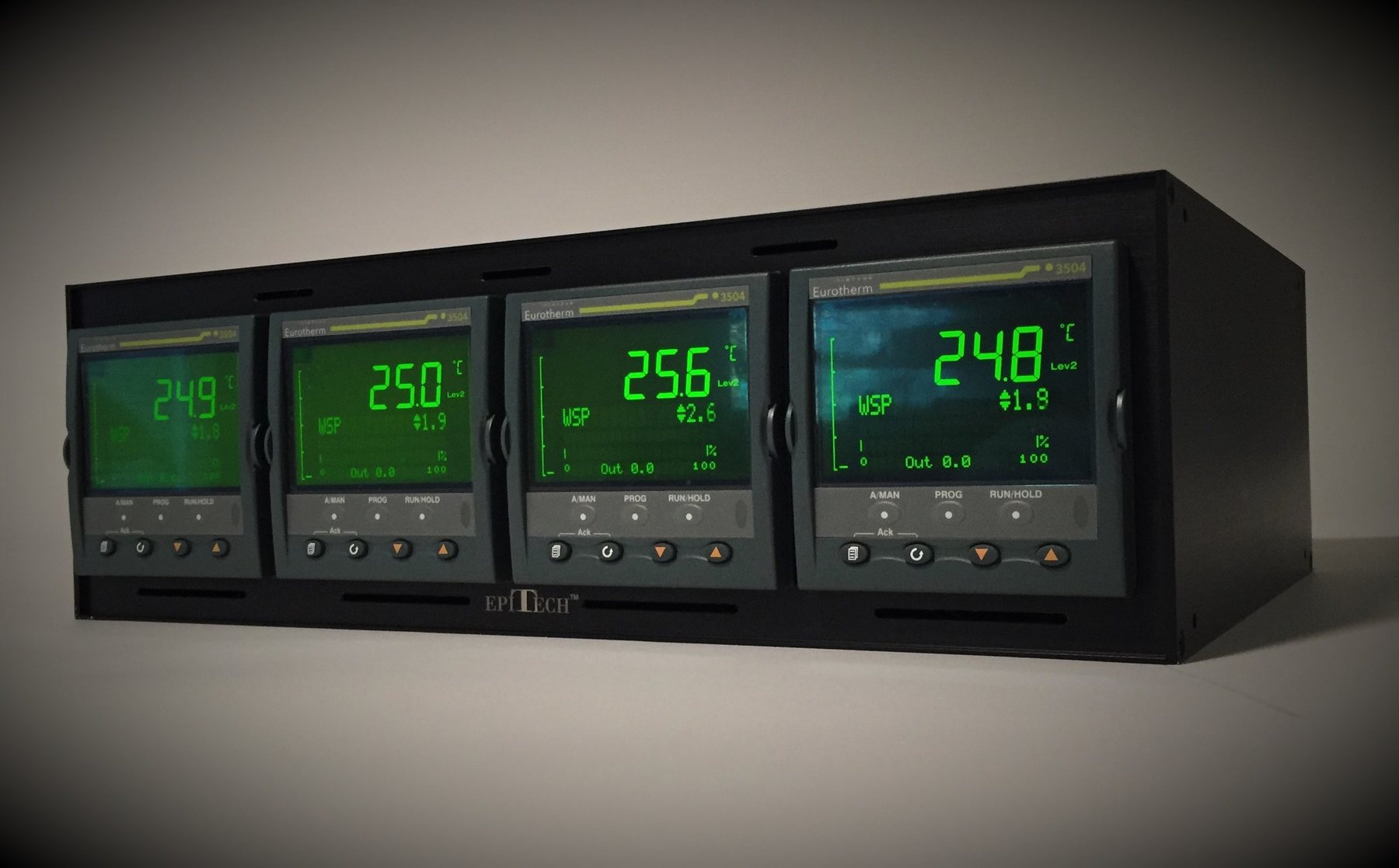

Multizone Bake Controllers

Chamber bakeout control with as many heater zones as your system needs: one, two, three or more. Replace an existing controller or specify a new control panel with an engineer who understands MBE.

Discuss your configuration Talk to an engineer

Zones

How many zones do you need?

Every controller is built to order with the zone count your chamber calls for. Tell us how your heaters are laid out and we build the controller around them.

One zone

A single bakeout zone for the chamber or one heater circuit.

Two or three zones

Separate zones for, say, the growth chamber, the buffer chamber and the load lock, each with its own setpoint.

More zones

As many zones as your heater layout needs, specified around the loads and the electrical supply.

Specifying a build

What we need to know

EpiTech has designed and built bake controllers in the past and can build a controller for your installation. Send the details below so we can work through the configuration with you.

Number of heater zones and their loads
Available electrical supply and existing wiring
Temperature sensors and required bakeout conditions
Required interlocks and operating sequence
Local control or software integration requirements
Panel, enclosure, and rack constraints

Zone count, temperature range, electrical ratings, and communications are specified for each build.

Communications

Communications and software compatibility

Communications and software integration are specified for each build. The selected interface and protocol are documented with the controller configuration.

Local controlConfigured for the heater zones and operating sequence
Remote interfaceSpecified to match your installation
Protocols and softwareAgreed with your existing control-software requirements

Configuration requirements

Discuss your multizone bake controller configuration

Tell us what you need to control and what equipment you already have. An EpiTech engineer will follow up to discuss the configuration, specifications, and quote.

Contact EpiTech: 443-295-3625 · [email protected]
