SmartMotion™ Motion Control Family
A servo-controller platform with configurations for valve positioning, substrate rotation, and sample elevators. Configuration is based on the mechanism, drive requirements, and control interfaces.
Replacement compatibility
Replacement form factor and motion hardware
EpiTech motion-controller replacements match the form factor of the older Veeco model they are intended to replace. The motion system uses EpiTech motors and cables with metal screw-together connectors.
Specify the controller model and mechanism being replaced when discussing the motion configuration.
Valve controller
SmartValve™ positioner for valved crackers: automatic and remote homing and max-position calibration, accuracy around ±0.01 mil.
SmartValve →
CAR controller
Two SmartMotion controllers configured for CAR control: one for the rotation axis and one for the position axis.
SmartMotion CAR control →

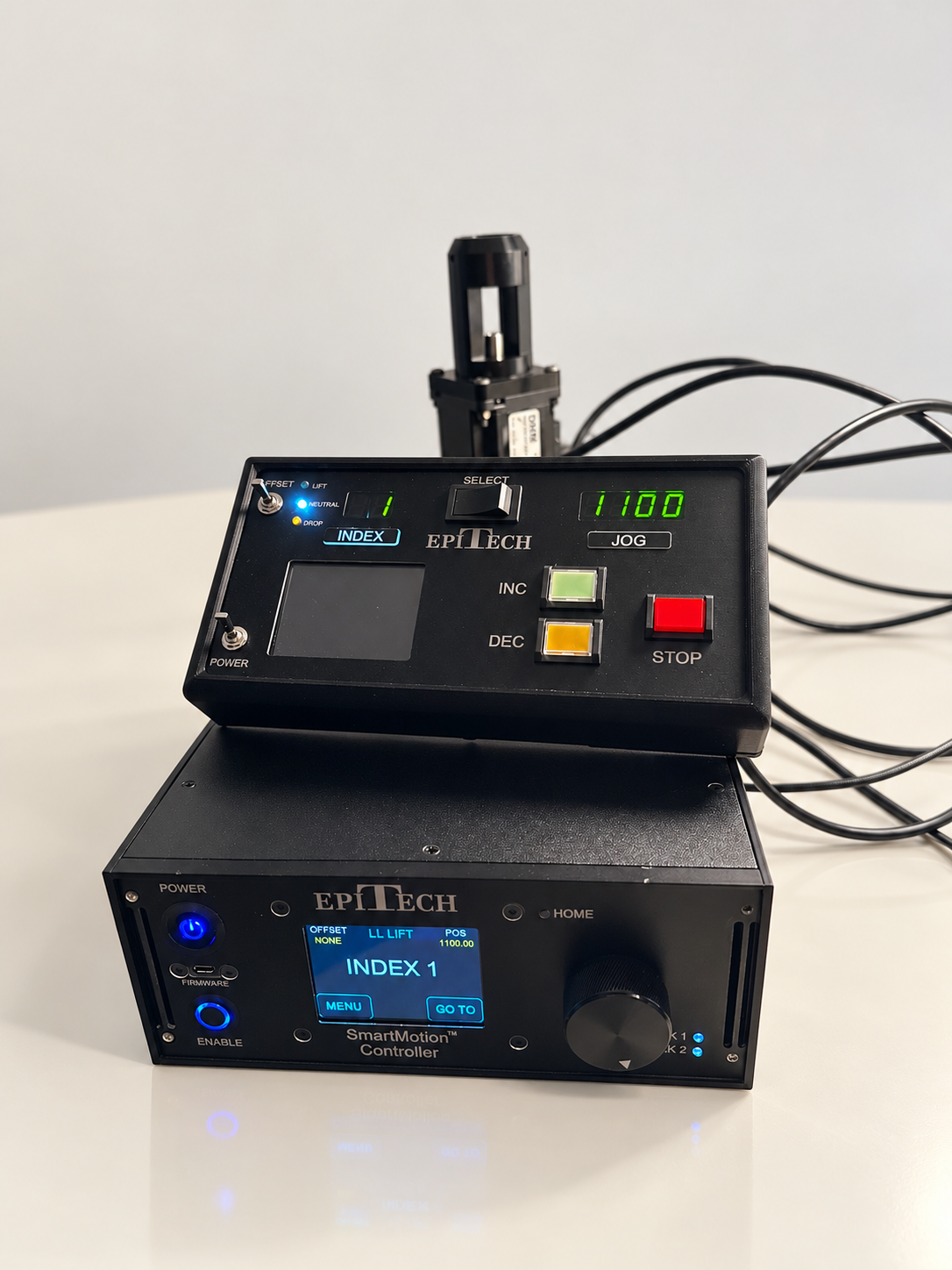

Sample elevator controller
Vertical travel for sample elevators and load-lock cassettes, on the same platform and front panel.
Discuss an elevator configuration →Shared across the family
- Boots in seconds
- Compact brushless AC servo motor, 200 W or 400 W
- Touchscreen setup and calibration
- Front-panel enable to disable the motor quickly
- Modbus TCP over Ethernet
- Modbus RTU and EI-Bisynch over RS-422
- Compatible with Molly, AMBER, Nova, Crystal XE, and Machine Studio (Epiware’s control software)
- 2U high, half rack width per axis
- Universal input, 100–240 VAC
- 10 m motor cable standard
Which configuration do you need?
| Configuration | Drives | Typical use |
|---|---|---|
| Valve | Valve positioner on a valved cracker | As, P, Sb and other valved sources |
| CAR | Two controllers: rotation axis and position axis | Uniform growth, positioning for transfer |
| Elevator | Linear vertical travel | Sample elevators, load-lock cassettes |
Product photographs
Motion controllers and motors
Communications
Communications and software compatibility
Ethernet and serial interfaces support integration with modern and legacy MBE control software. Supported protocols and interfaces are listed below.
- Modbus TCPEthernet
- Modbus RTURS-422 serial
- EI-BisynchRS-422 serial
- Molly · AMBER · Nova · Crystal XEcompatible
- Machine Studioby epiware llc
Specifications and operating instructions
Request the motion controller datasheet
We'll email the full specifications and operating instructions. Or tell us about your system and an engineer will follow up about integrating it.
Contact EpiTech: 443-295-3625 · [email protected]
Thank you for your request. We'll email the motion controller specifications shortly. Let us know if you have any questions.
— The EpiTech team
